SPECIFICATIONS

Compatible Audio & Video Equipment Style: player,Professional Audio Equipment

Dual Action Magnetic Stereo MM Cartridge: Double-moving Magnetic Vinyl Cartridge

Dual Moving Magnet Turntable Cartridge: Moving Magnet Stereo Cartridge Stylus

Hign-concerned Chemical: None

Material: ABS

Package: Yes

Type: Accessory Kits

Weight: 7.00 g

AT-VM95E Dual Moving Magnet Turntable Cartridge Dual Action Magnetic Stereo MM Cartridge Sylus Double-moving Magnetic Vinyl Cartridge for LP Vinyl Record Player Turntable Phonograph Hi-Fi Accessories
Feature:
1. Precise Compatibility: This dual moving magnet turntable cartridge is a professionally designed replacement for the AT-VMN95E stylus, allowing you to easily replace old or damaged cartridges with a new one.
2. Premium Materials: This moving magnet stereo cartridge stylus is made from high-quality materials that won't damage your records, offering exceptional reliability and performance.=
3. Color-Coded Connections: The turntable cartridge wiring features color-coded terminals for easy installation: R+ (red), R- (green), L+ (white), and L- (blue), ensuring a hassle-free setup of your dual action magnetic stereo mm cartridge stylus.
4. Outstanding Audio Frequency: The elliptical stylus of the double-moving magnetic vinyl cartridge precisely tracks the grooves of your vinyl records, producing outstanding audio frequencies for an amazing musical experience.
5. High-Performance Stylus: The dedicated vm stylus offers superior sound quality and durability, ensuring your vinyl records sound their best with every play.



Specification:
Product name: AT-VMN95E
Type: VM type moving magnet pickup
Broadcast frequency range: 20~22000Hz
Output voltage: 4.0mV (1kHz at 5cm per second)
Channel separation: 20dB (1kHz)
Channel error: 2. 0dB (1khz)
Needle pressure: 1.8-2.2g (2.0g standard)
Coil impedance: 3,300 ohms (1kHz)
DC impedance: 485 ohms
Load impedance: 47000 ohms
Load capacitance: 100~200pF
Coil inductance: 550 millihenries (1kHz)
Static compliance: 17x0.000001cm/dyne
Dynamic compliance: 7x 0.000001cm/dyne (100Hz)

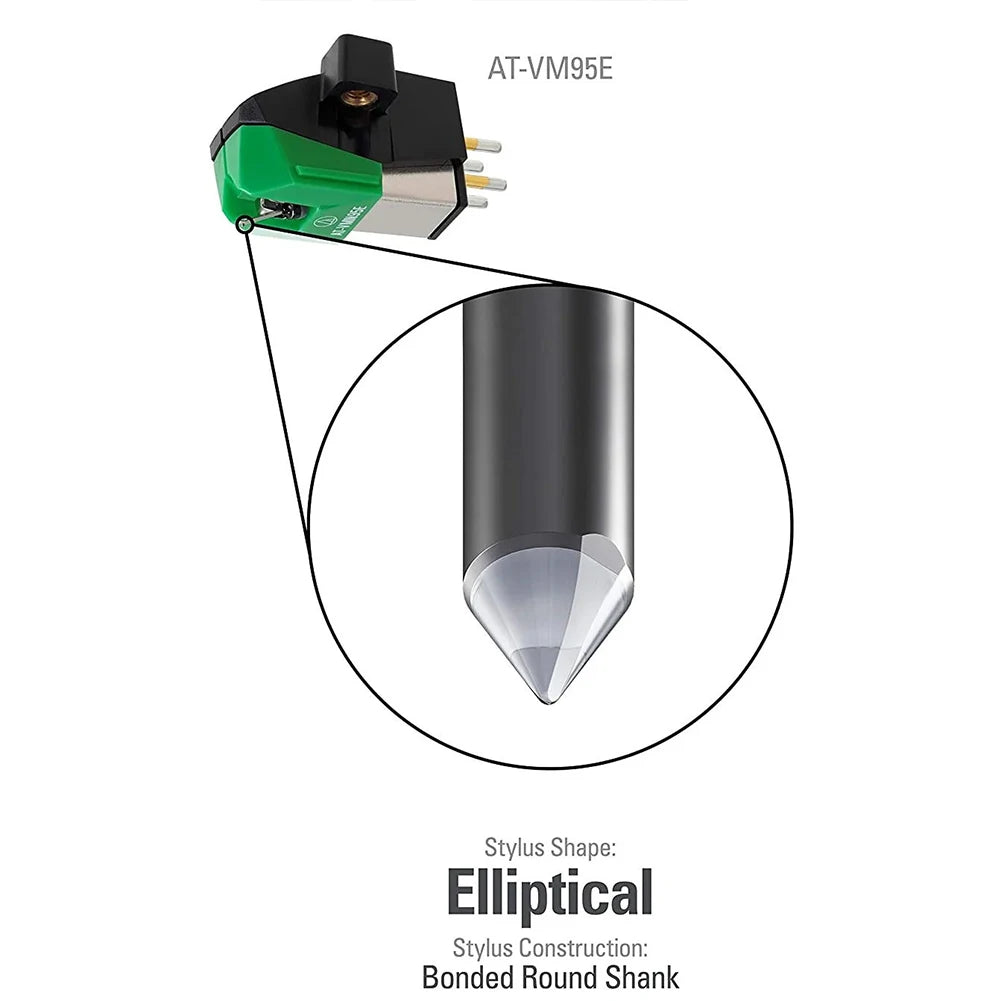

Stylus tip shape: 0.3x0.7mil jointed elliptical needle
Stylus arm: aluminum alloy tapered tube rod
Vertical tracking angle: 23°

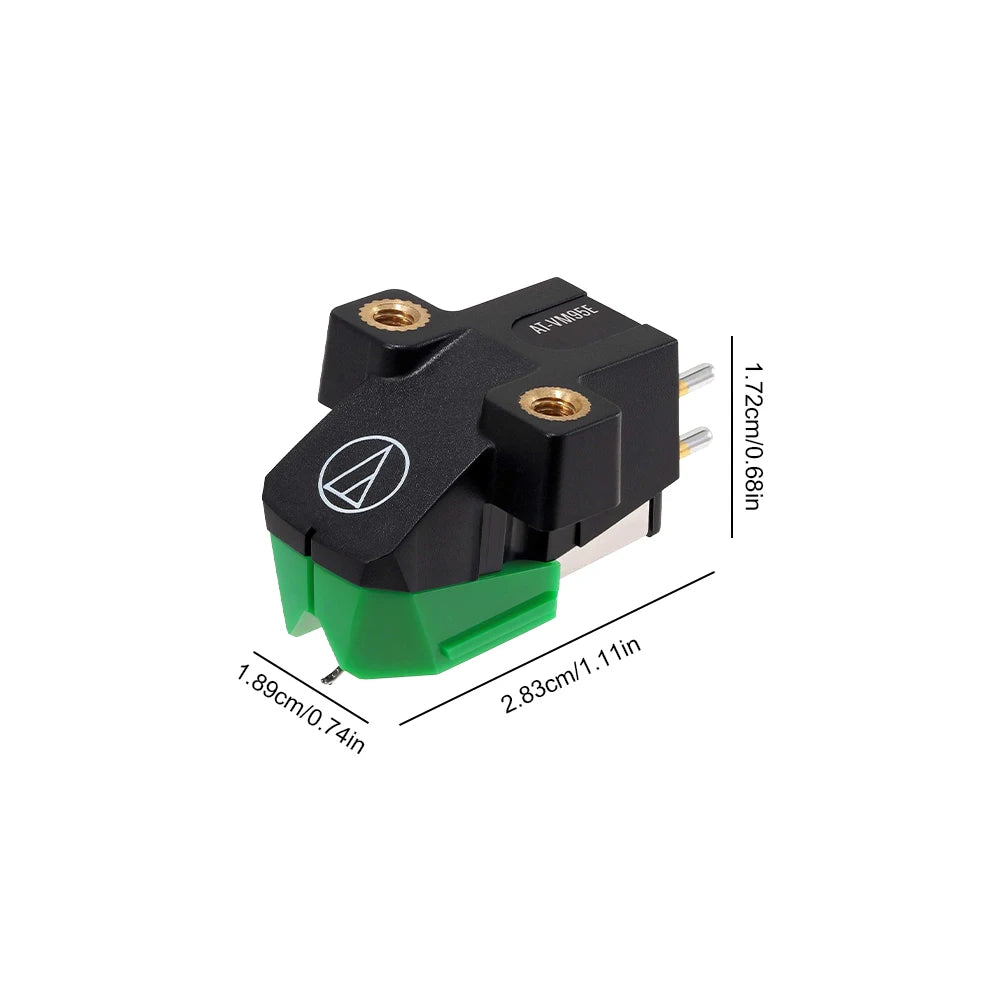

Size: 28.3*18.9*17.2mm/1.11x0.74x0.68inch
Weight: 7g


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Phono Cartridge
